HOW TO fit a 1.9cdti airbox mod for VXR

Collapse
This topic is closed.
X
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • HOW TO fit a 1.9cdti airbox mod for VXR







    http://www.merlinmotorsport.co.uk/SA...559/index.html

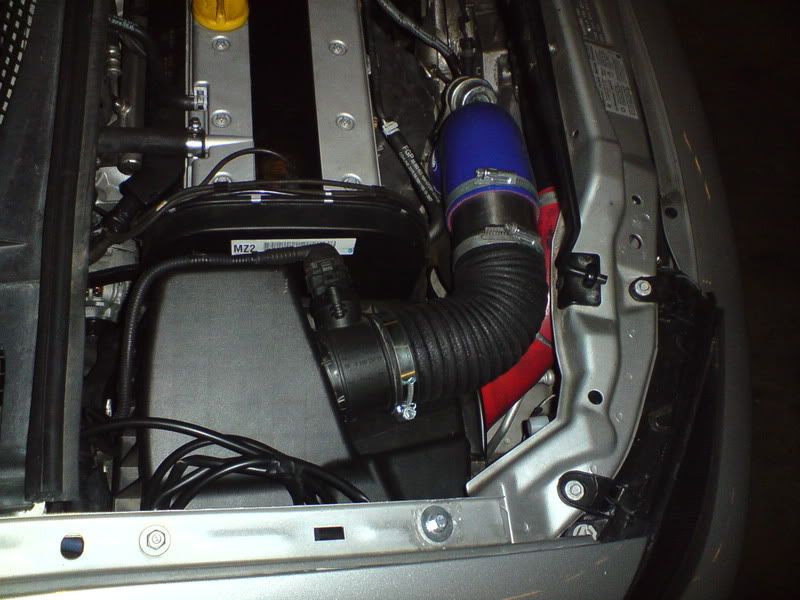

    the pipe work is from Samco Xtreme as its 3mm vs 5mm the std Samco is
    Samco Xtreme 90 degree reducing elbow 80mm to 60mm bore is used to Bolt onto the Turbo
    then get a bit of 80mm Steel or alloy tube I got this from a exhaust company
    then a Samco Xtreme 90 degree 80mm from AFM to the pipe joiner

    I have used a small bit of samco 80mm 3mm wide an a 80mm clip to Hold AFM into airbox
    I have used the Black stuff as i had that in work an it looks more oe I think

    hope this helps some one thanks
    danny
    the truth is out there
    part GSI part VXR
    tyre shreding tarmac terrorist

  • #2
    How much did that set you back
    Mods: 300+ Bhp Astra VXR Nurburgring Edition #560
    Stage 3 Courts / LSD / Carbon splitter and Rear Diffuser / Lightened Flywheel / Helix Sports uprated Clutch /1.9 CDTI airbox conversion with tophat conversion / RARB / DAP-RACE Springs / Tarox 340mm 10 POT / + ALOT ALOT more.

    Comment


    • #3
      have you the vxr maf then
      WARNING all replys are incorrect as usual

      Comment


      • #4
        pipe work was £40 all in
        and the airbox was £40 off a vauxhall parts company
        they are only £60 from vauxhall with a new airfilter

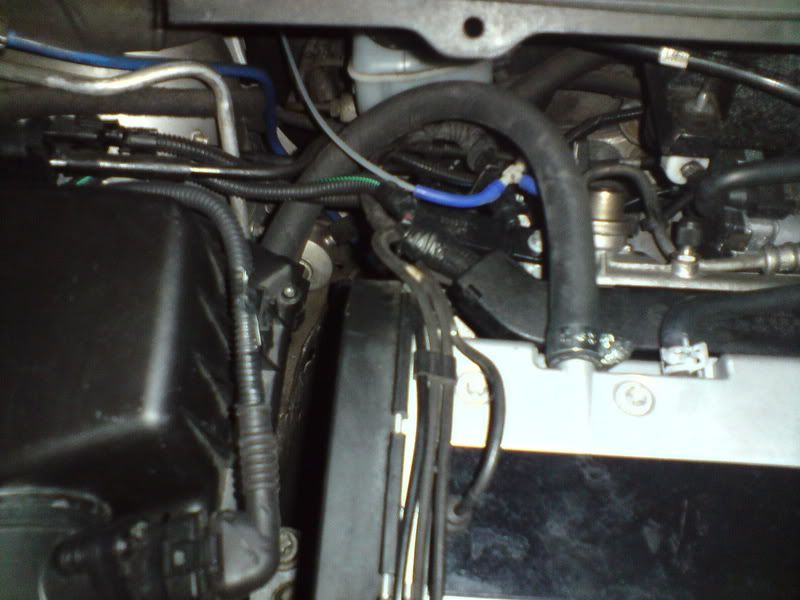

        also the breather is in the bottom of the airbox with a bit of pipe 17mm off top of my head
        that was from work again but should only cost £4 from a hose company
        the truth is out there
        part GSI part VXR
        tyre shreding tarmac terrorist

        Comment


        • #5
          Originally posted by paulk View Post
          have you the vxr maf then
          yes along with the engine an gearbox
          the truth is out there
          part GSI part VXR
          tyre shreding tarmac terrorist

          Comment


          • #6
            looks ok but the jobs from percy look better.....how have you fixed the maf to the airbox mate
            WARNING all replys are incorrect as usual

            Comment


            • #7
              Originally posted by paulk View Post
              looks ok but the jobs from percy look better.....how have you fixed the maf to the airbox mate

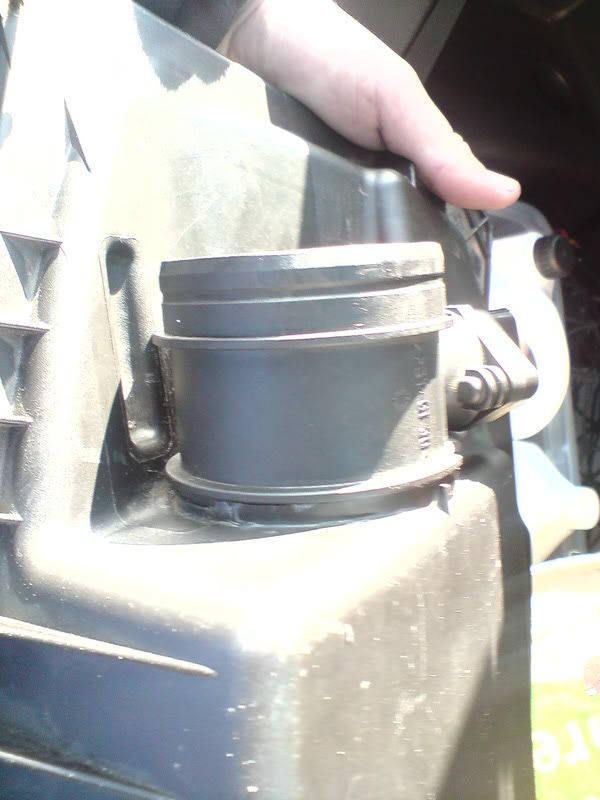

              Inside the airbox the maf has a 3mm ring of samco around it and a 80mm clip holding that in place no probs at all
              the truth is out there
              part GSI part VXR
              tyre shreding tarmac terrorist

              Comment


              • #8
                ok mate i get u.....
                WARNING all replys are incorrect as usual

                Comment


                • #9
                  Originally posted by paulk View Post
                  looks ok but the jobs from percy look better.....how have you fixed the maf to the airbox mate
                  Agreed!!! (I wonder why???)

                  Comment


                  • #10
                    where is your manifold heat shield ?

                    Comment


                    • #11
                      Originally posted by S20 GST View Post
                      where is your manifold heat shield ?
                      its not a std vauxhall manifold on the car
                      it is the Dbilas Z20 Turbo manifold
                      the truth is out there
                      part GSI part VXR
                      tyre shreding tarmac terrorist

                      Comment


                      • #12
                        I just wonder why if this was worth doing Vauxhall didn't do it that way in the first place? Surely they would have done. I understand the theory of reducing heat from the crossover etc. But wether its worth the hassle? Anyone seen any success from doing this?

                        Comment


                        • #13
                          vauxhall do it on the Corsa VXR now dont they
                          the truth is out there
                          part GSI part VXR
                          tyre shreding tarmac terrorist

                          Comment


                          • #14
                            vaux have both boxes i wanna know why they chose the current over the diesel box must have been a reason as it would cost them less to fit the diesel one as no crossover pipe etc
                            Astra vxr mk2 with stage 1 EDS remap

                            Comment


                            • #15
                              Originally posted by corsasrisilver View Post
                              vaux have both boxes i wanna know why they chose the current over the diesel box must have been a reason as it would cost them less to fit the diesel one as no crossover pipe etc
                              cost!

                              use all the existing readily available kit from the mk4 and alter some hoses to accept an 80mm afm...

                              or

                              design and make a new inlet tract and a special 80mm version of the 1.9CDTI box specifically for the VXR...

                              "that will be option A please" says mr wagnor.
                              ...superior horsepower through knowledge,good design and maximum efficiency
                              version 1.0 a low boost 347bhp
                              version 2.0 a stock boost 356bhp.
                              coming next......280bhp of finest signum V6 derv power!.
