  • my home crafted strut brace :)

    with my best mate being a metal fabricator i put the question to him of making a rear bar and he said not a problem so off we plodded to the work shop to begin

    took overall about an hour or so. measured the gap, measured the bolt spacing and that was it took to work.

    found a bar that was both light and thick walled and two 10mm thick solid plates to put either side measured it up, straightened it and before you know it all the cutting and welding was done.

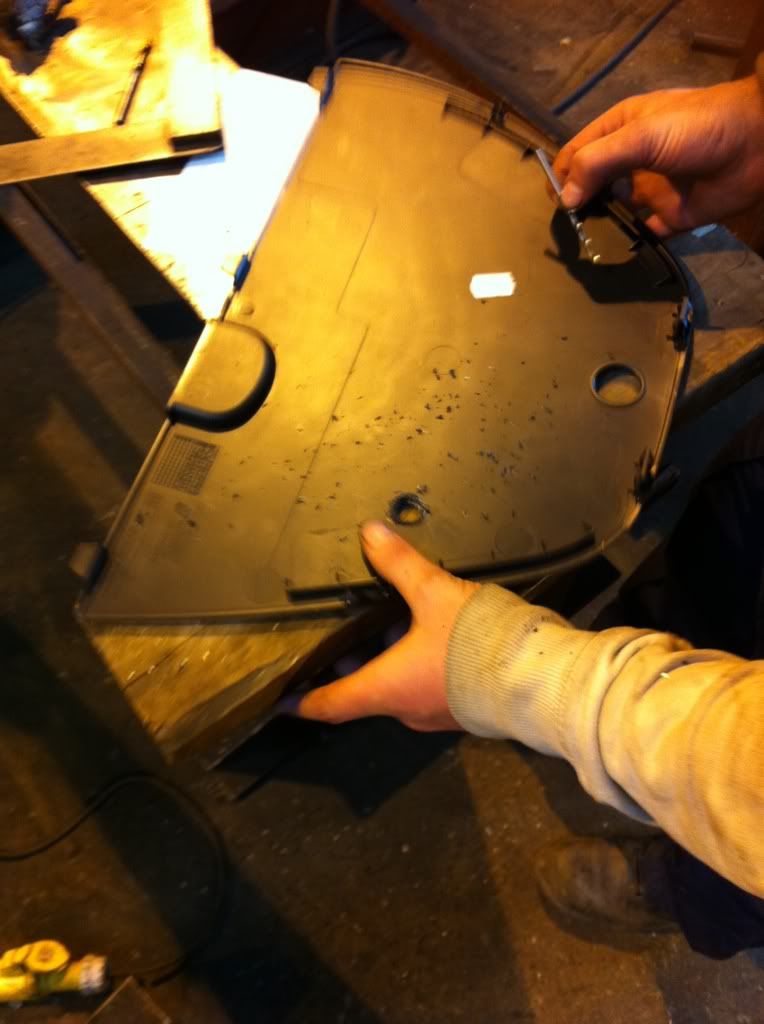

    while he did that i was measuring the holes to drill into for the side panel in the boot cause i havent bothered cutting a big chunk out just threaded them threw before attaching the final fixing plate (so basically i aint getting the panels out cause there stuck on the bar) but i dont mind cause there hardly anything to buy. only thing i need doing now is to paint the thing, but heres a couple of pictures of the progress and finished product.....just need to paint it arden blue, anyone know where to get it? and also get some rubber bungs maybe to finish it off. here you go anyways....slate/rate:







    big *** machine pressing the holes

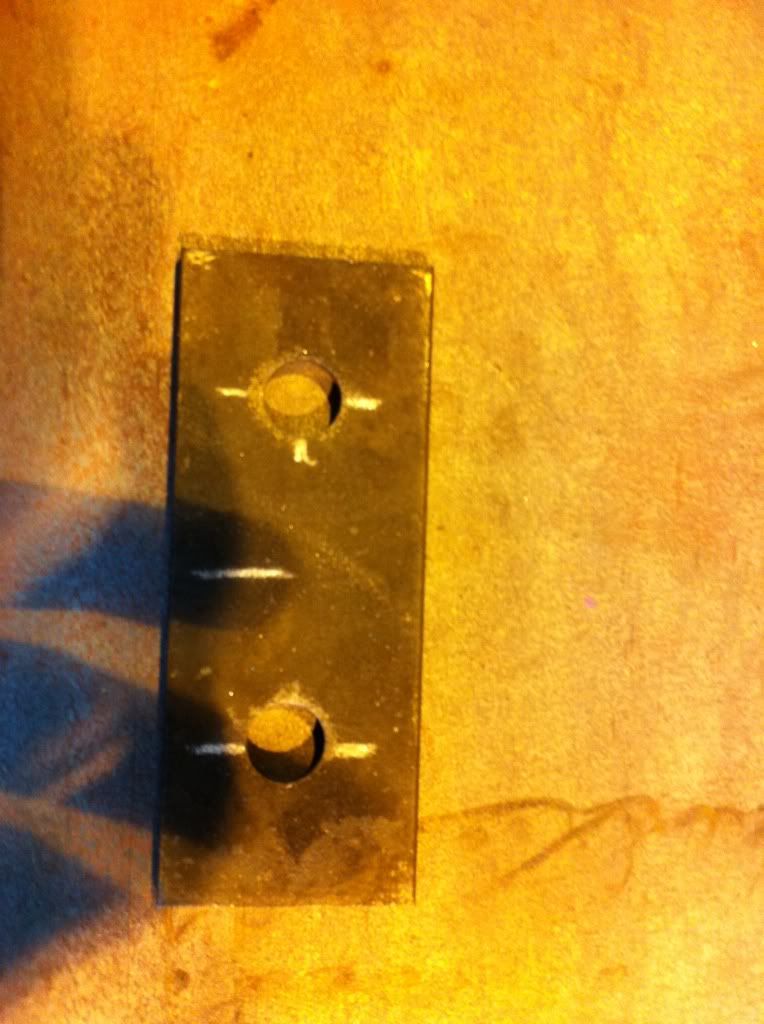

    holes pressed


    bit of welding

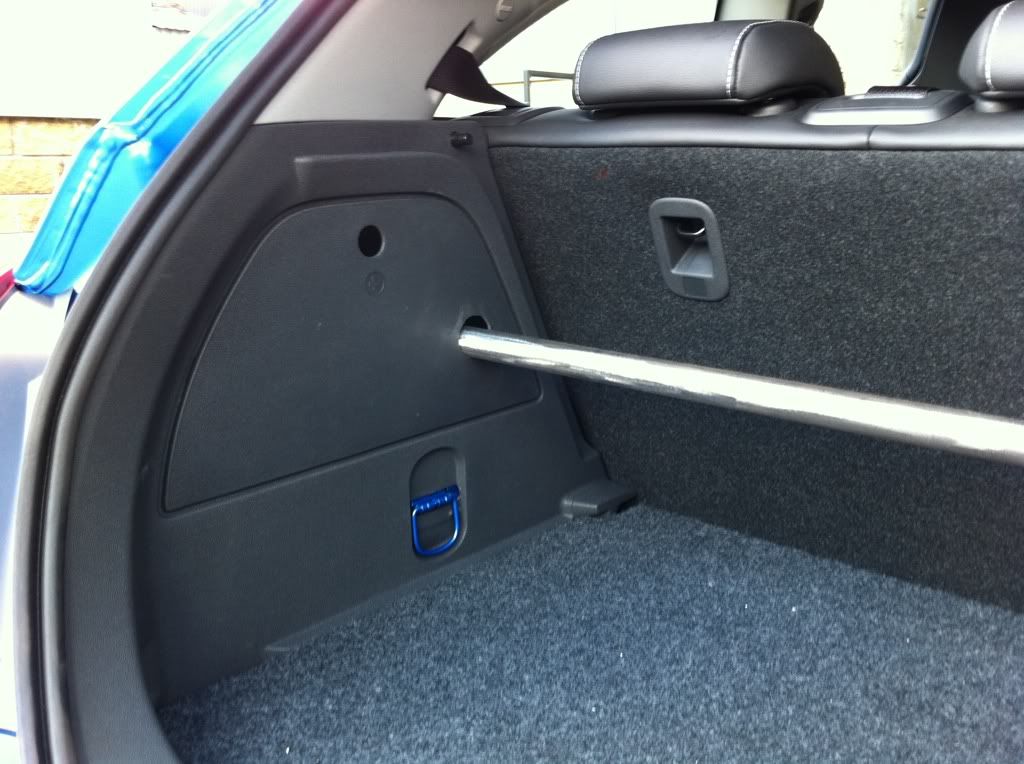

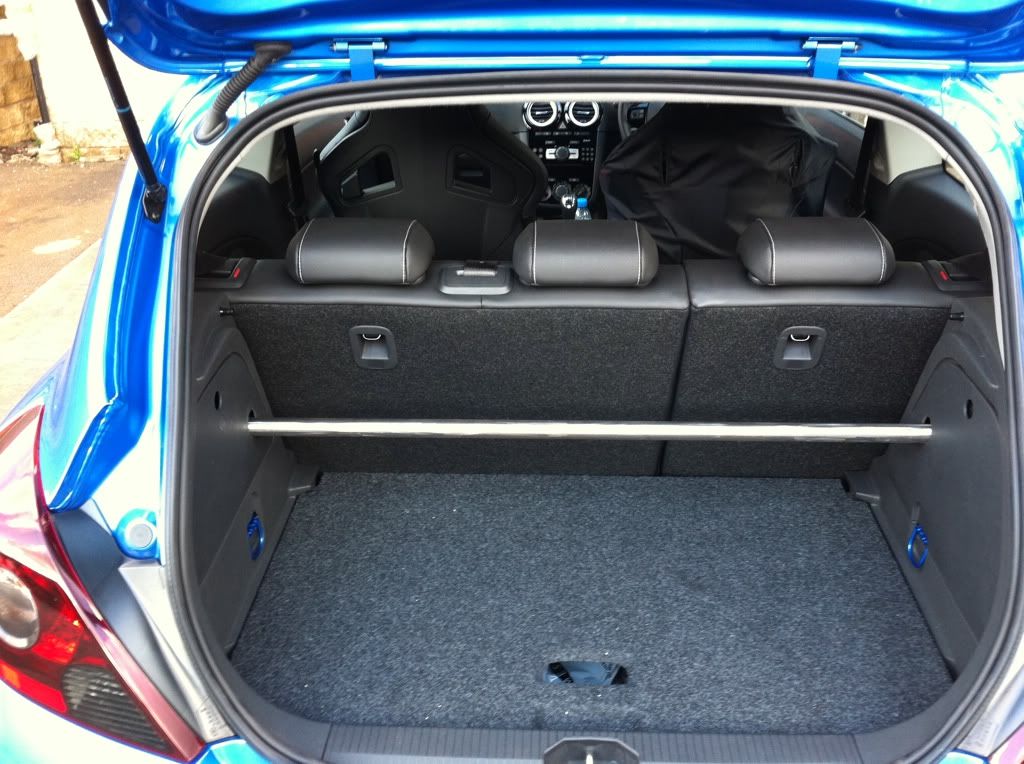

    finished product




    cheers guys
    tommy

  • #2
    Nice work man

    Independent bespoke mapping available see my Facebook or find me at WG Motorworks

    Clique #14

    Comment


    • #3
      Fair play lovely work there

      Comment


      • #4
        Cheers fellas, can any of you point me in the direction of the Arden blue paint and some rubber bungs?

        Comment


        • #5
          Ermm halfords id say mate

          Comment


          • #6
            Sweet, gonna go there tommoz and get it painted and finished off nicely.

            Comment


            • #7
              Easy way to save you the best part of £100 good job mate
              #weusedtobetheshit

              Comment


              • #8
                cheers matey, save myself a packet in under an hour

                Comment


                • #9
                  well played mate,

                  av not got the enthusiasm to make one of them
                  Daily Mk7 Golf R - Nortech Corsa Track Car !

                  Comment


                  • #10
                    Originally posted by vxrcopey View Post
                    well played mate,

                    av not got the enthusiasm to make one of them
                    Want me to make you one

                    Comment


                    • #11
                      looks good dude

                      Comment


                      • #12
                        top job
                        WARNING all replys are incorrect as usual

                        Comment


                        • #13
                          Cheers guys, just needs painting now.....then the seats to come out.....then while I'm at it make a role cage haha

                          Comment


                          • #14
                            Originally posted by craigyvxr View Post
                            looks good dude
                            You get my text ad to when I'm picking it up?

                            Comment


                            • #15
                              very nice

                              About to buy one of these from regal!
                              M135i
