  • HOW TO replace standard panel filter...

    ...with an aftermarket itg panel filter!

    Tools needed:
    T20 torx bit screwdriver
    8mm socket (if removing hose from filter housing)

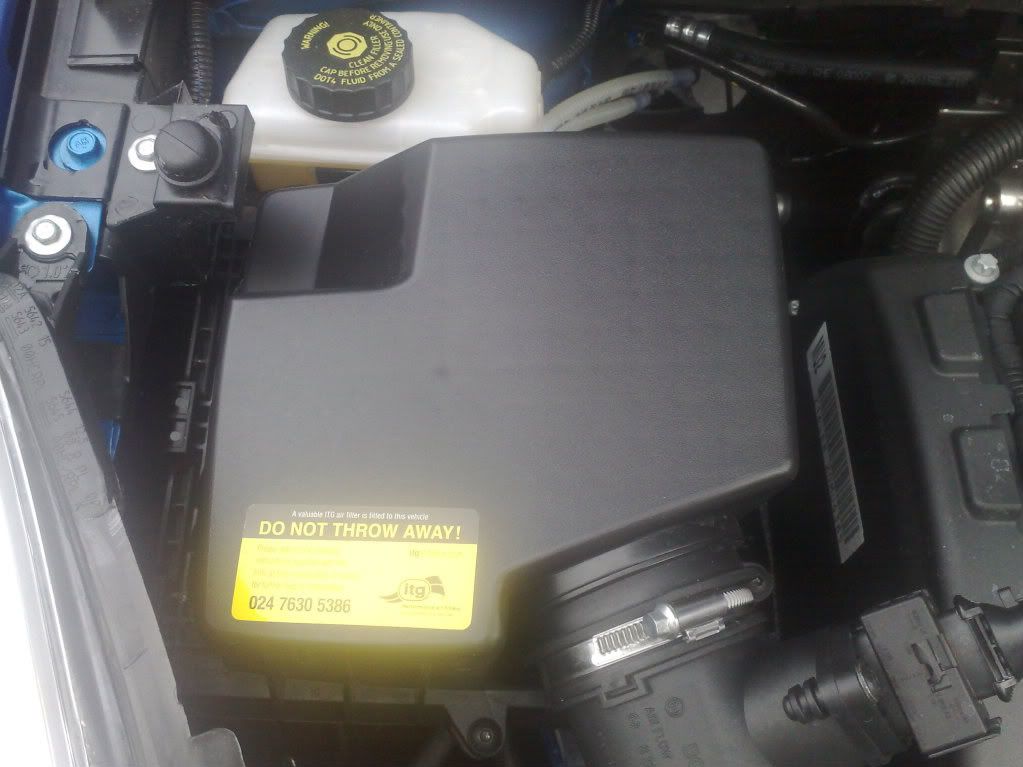

    First locate air filter housing:

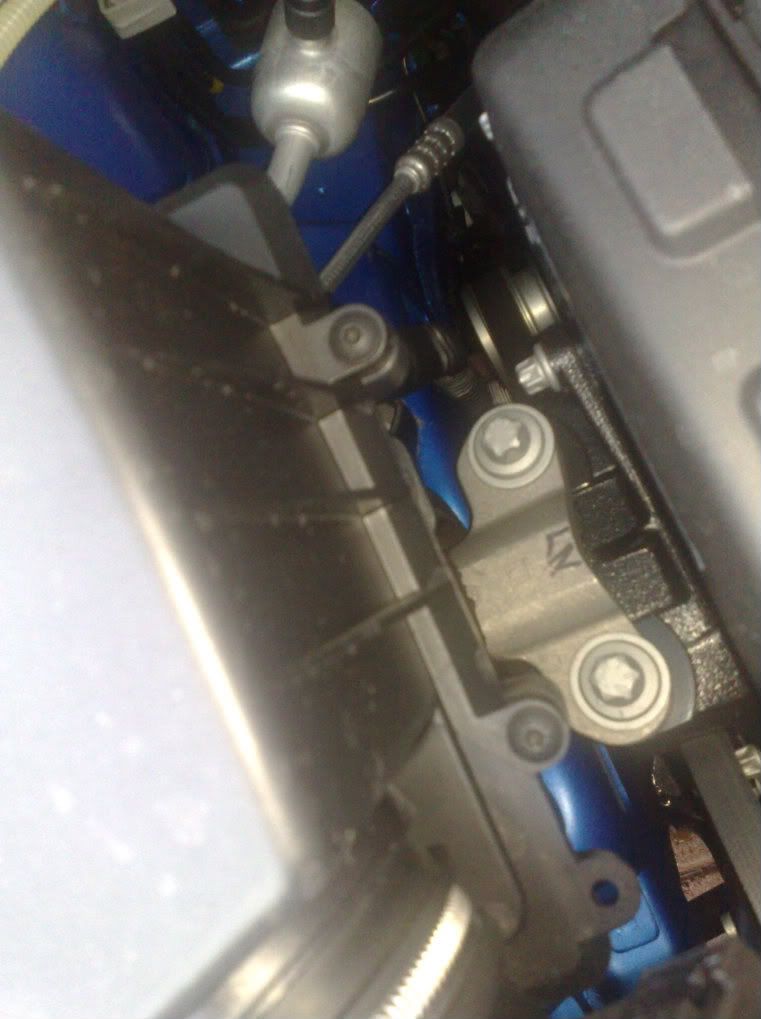

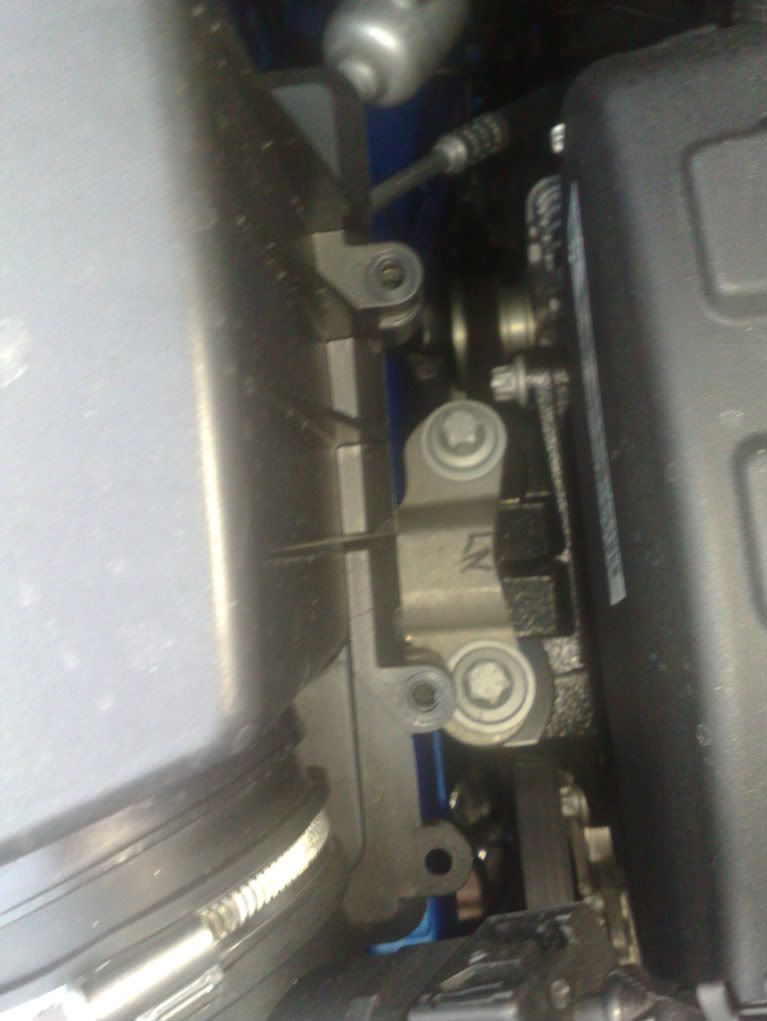

    Then undo the 4 star drive bolt (2 at the side, as shown, 1 on the bottom and 1 on the top side of the filter housing)

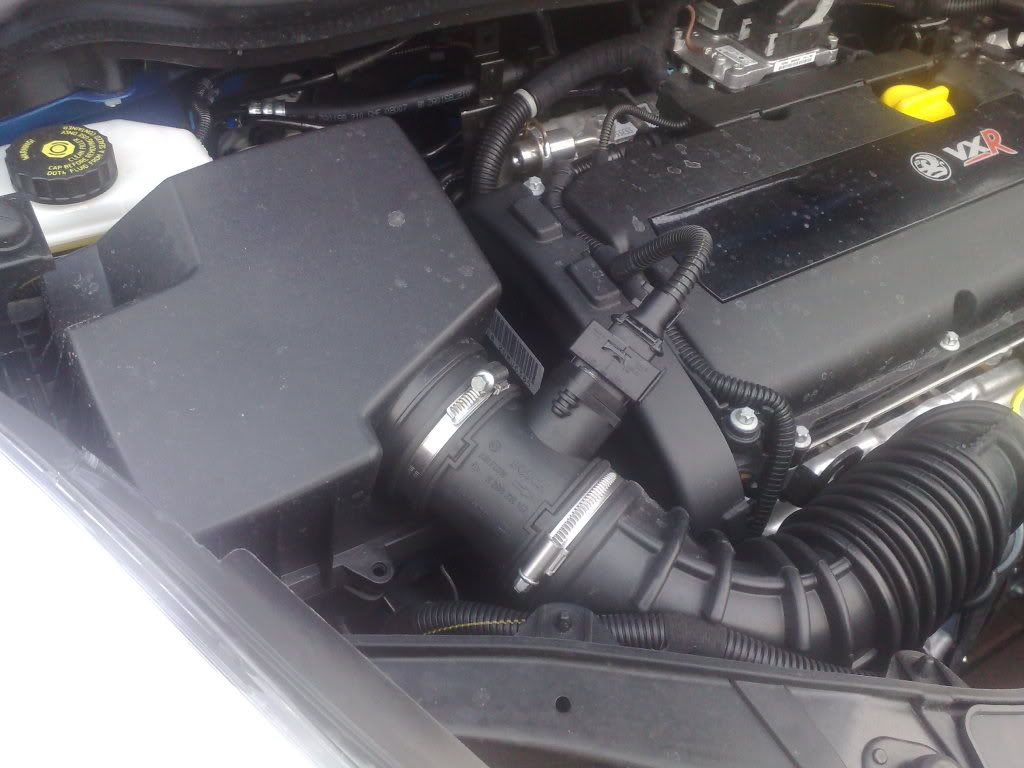

    Then locate the left jubilee clip on the intake coming off the airbox:



    Then undo with a 7mm spanner to give yourself some clearance:

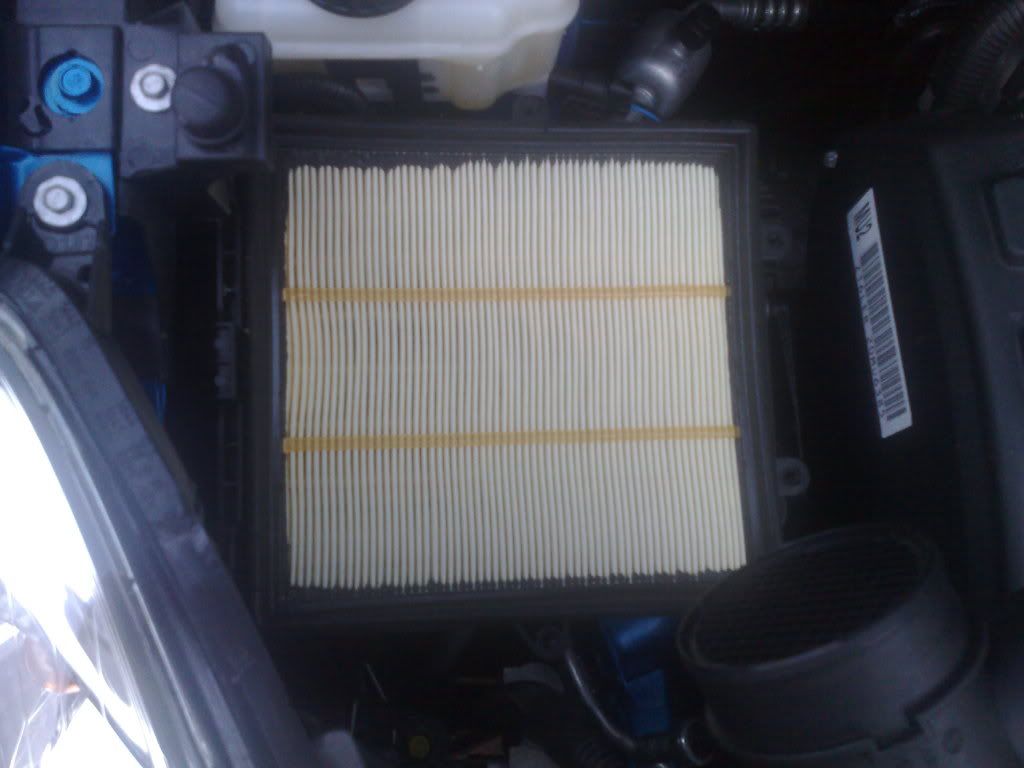

    Take airbox cover off from the right hand side and move away to reveal the standard panel filter:

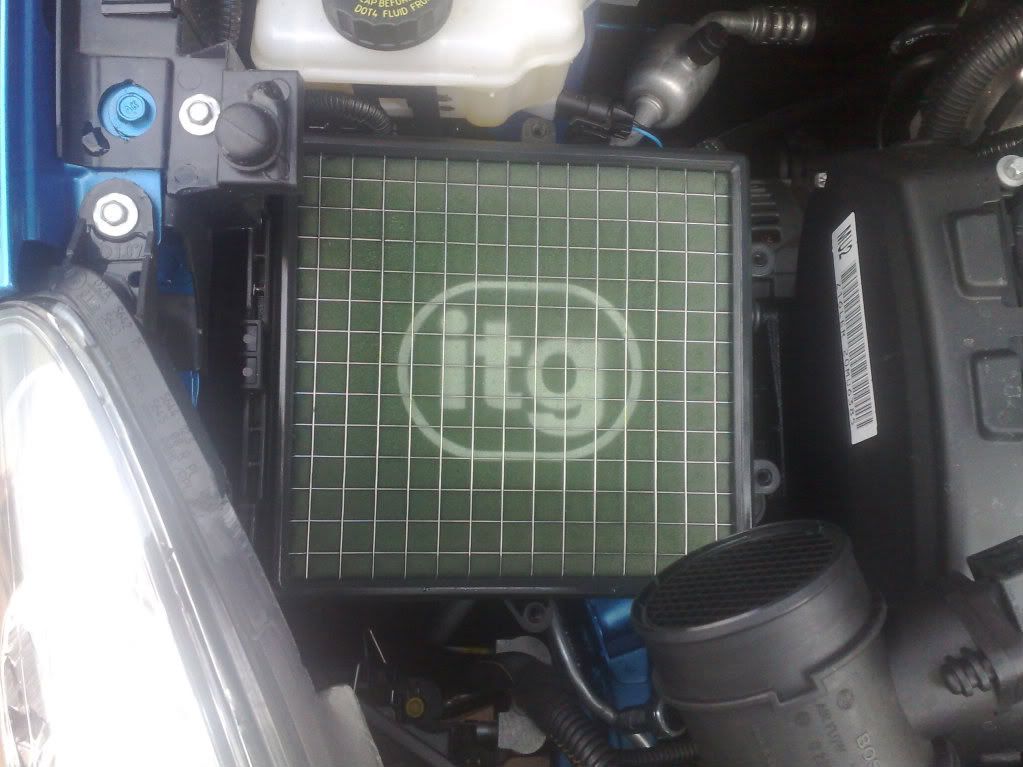

    Then replace it with the new pre-oiled itg item:



    Not exactly hard to do, but job well done me thinks!



    Mark

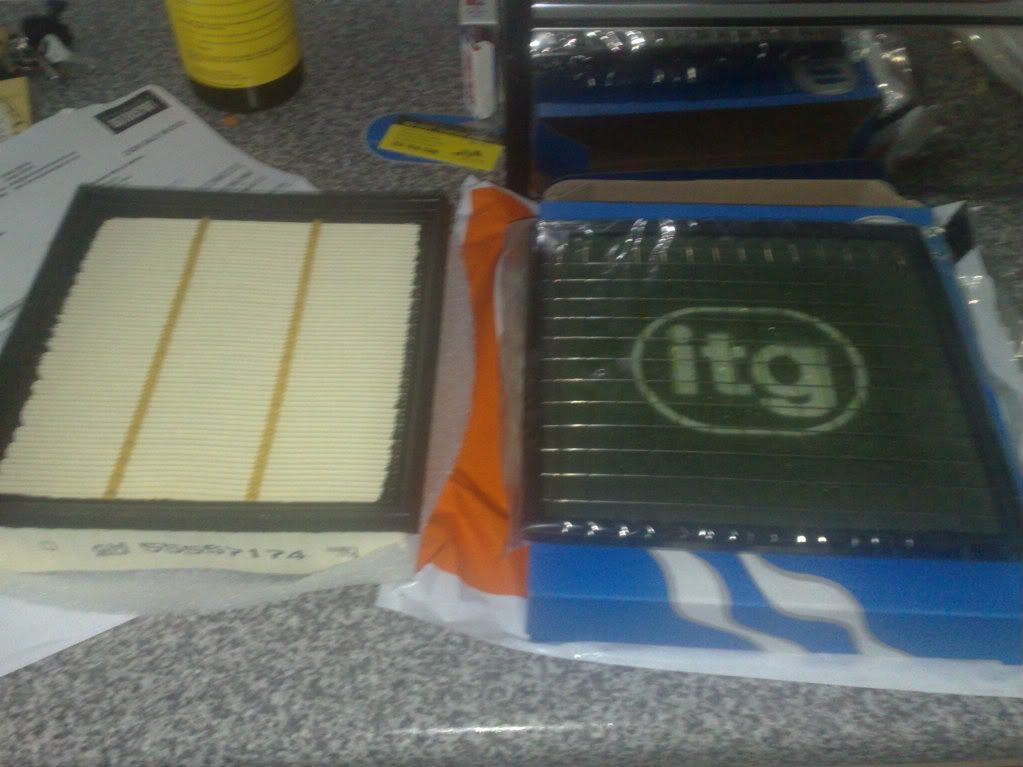

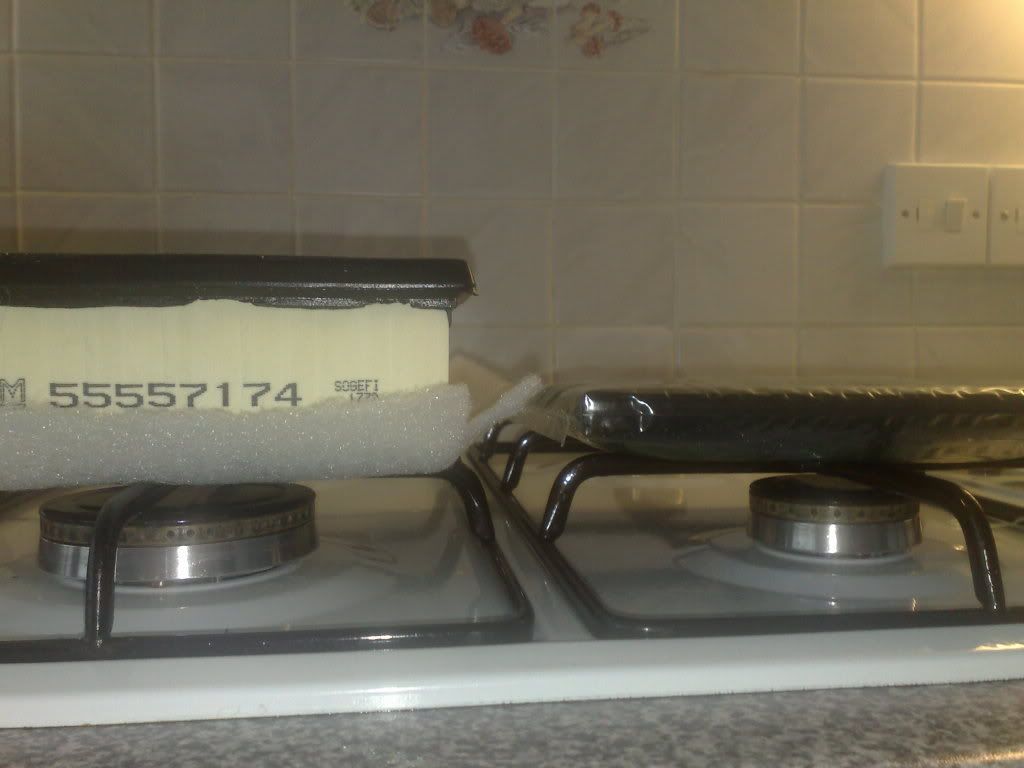

    Difference in the 2 panel filters:



    Last edited by Mark; 2 March 2010, 04:36 PM.
    sigpic

  • #2
    step on picture nr 5 is not necesary...

    do you want some positive reputatin ???
    MB E63s AMG
    MB C63 AMG & Performance Package
    Megane R.S. 250 CUP - Gone, But Not Forgotten
    Opel Corsa OPC / VXR - Gone, But Not Forgotten

    Comment


    • #3
      Originally posted by brano_co View Post
      step on picture nr 5 is not necesary...

      do you want some positive reputatin ???
      Eh yes please!!!

      That jubilee clip is done to give more movement when removing the cover.
      sigpic

      Comment


      • #4
        Quality. Hopefully mine will come tomorrow.

        Have some Rep tp

        Comment


        • #5
          Cheers fella's!
          sigpic

          Comment


          • #6
            Hello Folks,

            You notice any difference in sound with this Panel filter?

            Thanks Nick

            Comment


            • #7
              Originally posted by NickArtic View Post
              Hello Folks,

              You notice any difference in sound with this Panel filter?

              Thanks Nick
              You can hear the dump valve alot more, well tb I could never hear mine until I fitted the filter!!!
              sigpic

              Comment


              • #8
                wait till its mapped fella ......sounds sssoooooooo much better...will drop knickers at 300 ft

                Comment


                • #9
                  Originally posted by vxr titan View Post
                  wait till its mapped fella ......sounds sssoooooooo much better...will drop knickers at 300 ft
                  Does it sound different than it does now? In what way?
                  sigpic

                  Comment


                  • #10
                    more throaty...pops more and your filter noise you can hear now seems to be a bit more noticable and sounds like its sucking more air in.........if that makes sense?

                    Comment


                    • #11
                      Originally posted by vxr titan View Post
                      more throaty...pops more and your filter noise you can hear now seems to be a bit more noticable and sounds like its sucking more air in.........if that makes sense?
                      Yeah, I've heard a few ppl say this when it has been remapped.

                      Only 7 more sleeps to go!!!
                      sigpic

                      Comment


                      • #12
                        umm.. not sure if its just me cos no-one else has said.. or its just the current 'batch' of itg filters but compared to mine yours has been fitted wrong... mine needed to be turned 90degrees?? might want to check yours matey the filters arnt actually square, slightly rectangle. just something i noticed but thanks for the guide!

                        Comment


                        • #13
                          pls update the pics Mark
                          MB E63s AMG
                          MB C63 AMG & Performance Package
                          Megane R.S. 250 CUP - Gone, But Not Forgotten
                          Opel Corsa OPC / VXR - Gone, But Not Forgotten

                          Comment


                          • #14
                            Originally posted by brano_co View Post
                            pls update the pics Mark
                            OH no I forgot about that when I deleted my album! I will get it sorted, do you need them?
                            sigpic

                            Comment


                            • #15
                              Originally posted by Mark View Post
                              OH no I forgot about that when I deleted my album! I will get it sorted, do you need them?
                              no, i am OK with that, but sometimes somebody maybe will need them
